B-EX6T1

Extending the Superb Performance and Value of the B-EX range to Wide Format Printing

The B-EX6T1, 6 inch industrial printer series has been designed with the performance and functionality to meet the demands of the wide-web printing marketplace, with features and options to offer the lowest cost of ownership; including an extended long-life print head; Toshiba’s unique ribbon save mode and up to 800 meter ribbon length combined with super high print speeds will improve efficiencies and ultimately reduce costs over the life of the printer.
  • High speed, high throughput with advanced processing capabilities
  • Rugged, robust and durable, with easy operation
  • USB and Ethernet come as standard.


Discover more about Toshiba's industrial labelling.

Specifications: B-EX6T1

GENERAL

Printing Technology:
Thermal transfer, Direct thermal
Head type :
Near Edge
Interface:
Ethernet 10/100 Base T, USB 2.0
Memory:
64 MB (Flash Rom) , 32 MB (SD-RAM)
Alignment Base:
Central
Media loading:
Side opening
Sensor:
Reflective, Transmissive

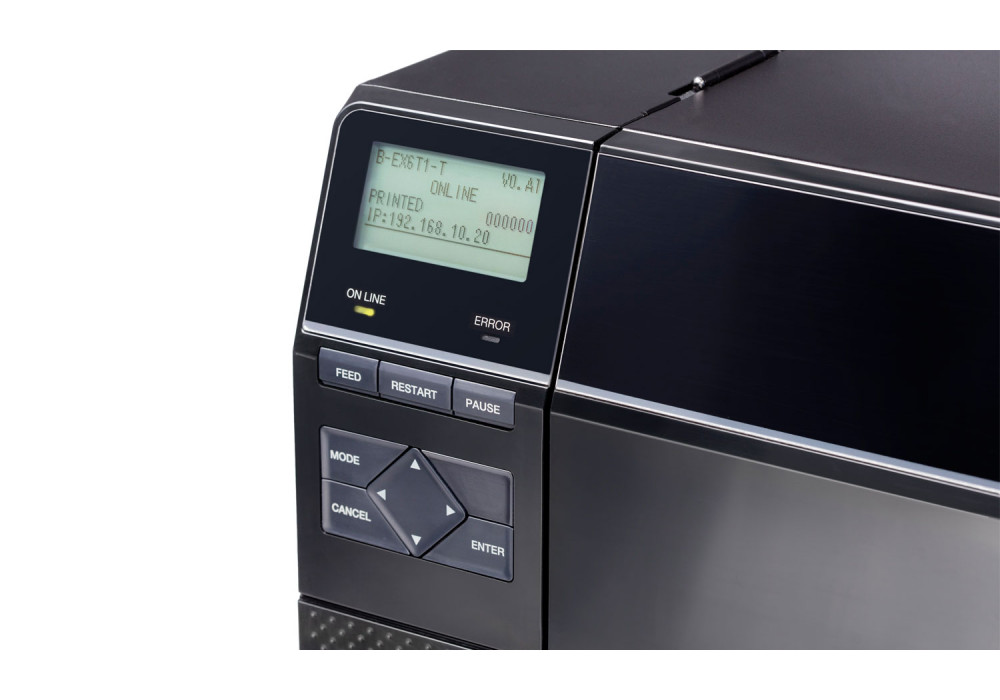

User Interface:
LCD screen (Graphic 128 x64 dots), Status indicator, Optional Bluetooth for external device setting tool
Operator keys:
Feed, Restart, Pause, Menu Navigation
Dimensions (W x D x H):
331 x 460 x 310 mm
Weight:
20 KG
Duty Cycle**:
30,000 labels/day

PRINT

Print width:
160 mm
Print Speed:
up to 12 ips (305 mm/sec)
Resolution:
203/305 dpi (8/12 dots/mm)
Fonts:
Bitmap, Outline, Price, TTF & OTF
Print length:
1490 mm
Barcodes:
UPC/EAN/JAN, Code 39, Code 93, Code128, EAN 128, NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Postnet, RM4SCC, KIX-Code, Customer Barcode, GS1 Databar
2D Codes:
Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417, CP Code

MEDIA

Backing Paper Width :
50-165 mm
Media thickness:
0.08-.025mm
Max outer roller diameter:
200 mm
Core diameter:
40-76.2 mm
Media type:
Roll, Fanfold

RIBBON

Max ribbon roll diameter:
90 mm
Standard ribbon length:
600 m
Ribbon width:
max 170 mm
Ribbon Core Width :
Flush cut to Ribbon Width
Ribbon Core Size:
25.4 mm (1 inch)

FUNCTIONS

Print Functions:
Ribbon Saving
Programming language:
TPCL, ZPLII
Issue mode:
Batch, Auto cut*, Peel-off*
System Features:
RFID Ready, Double ribbon motor tension control, Tool less replacement of Print head and Platen, Usb Host/ Real time clock
**:
Guide to the number of 104mm high labels labels produced in a day. This is not a guarantee nor a limitation of performance

Accessories

  • B-EX700-RS-QM-R - Serial Interface
  • B-EX906-H-QM-R - Peel off Module
  • B-EX706-RFID-U4-EU-R - UHF RFID Kit
  • B-EX700-IO-QM-R - Expansion I/O Board
  • B-EX206-QM-R - Disk Cutter for B-EX6
  • B-EX700-WLAN2-QM-R - Wireless LAN Module
  • B-EX700-CEN-QM-R - Centronics Parallel Interface
