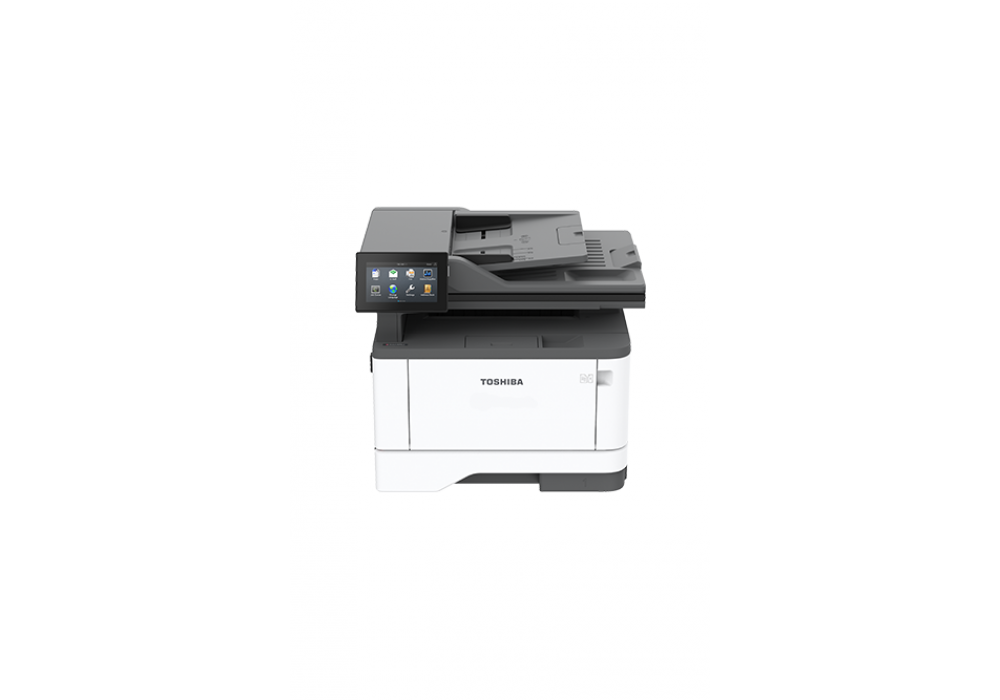

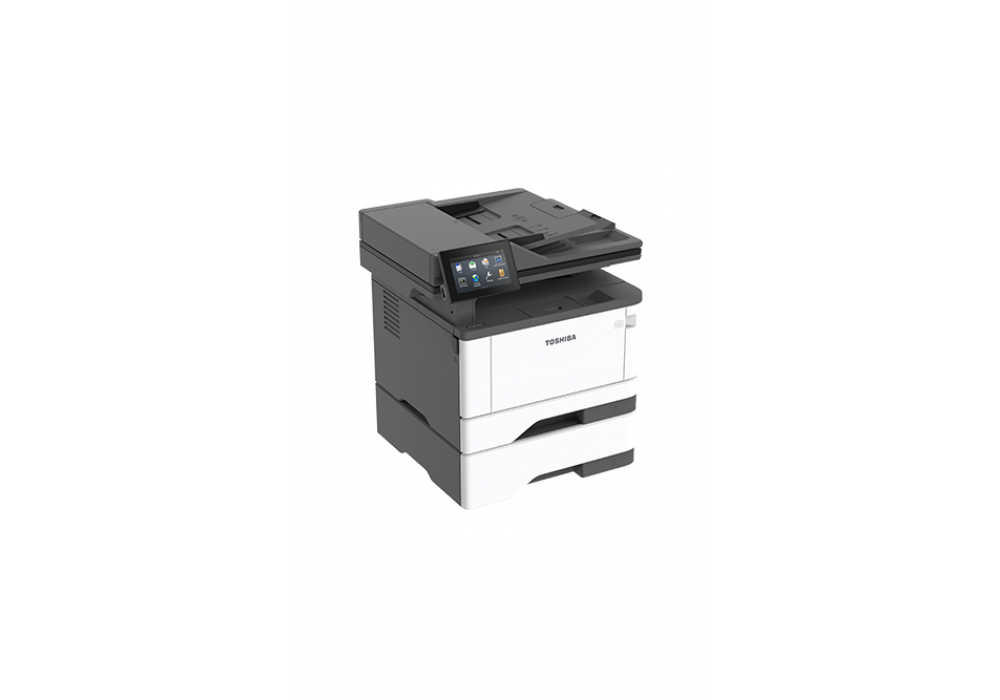

e-STUDIO409AS

State-of-the-art printing system for small workgroups with greater efficiency and ease of use in everyday business.

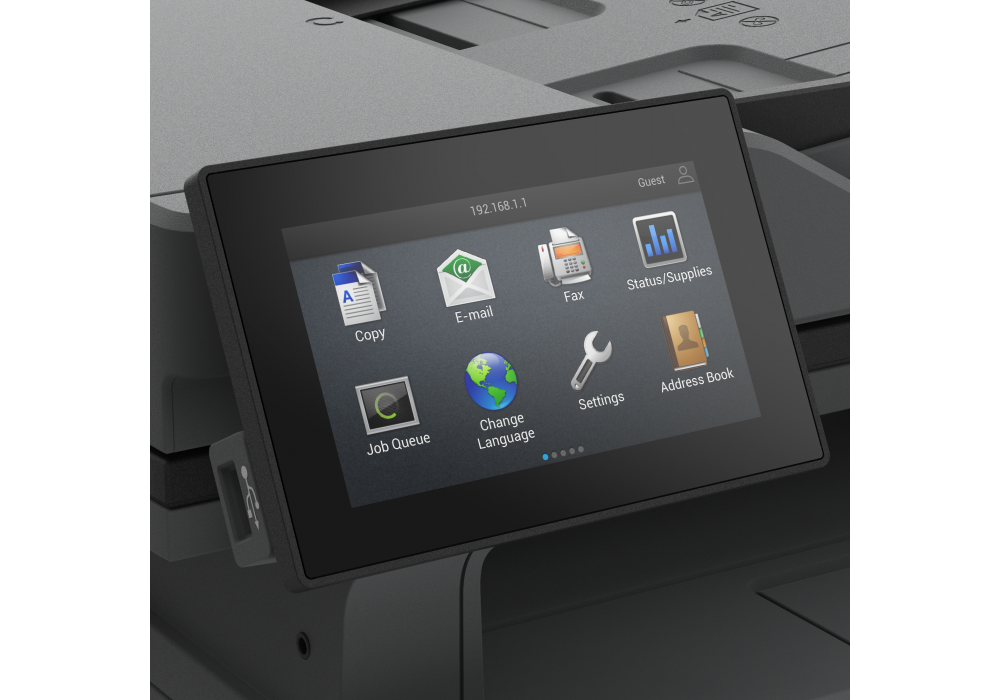

The multifunctional e-STUDIO409AS is equipped with a large, customisable colour touch panel measuring 10.9 cm (4.3 inches) for intuitive access to all functionalities – no need to interact with buttons. By installing optional apps onto the device, this cloud ready system can be connected to the major cloud services, so users can print from or scan to, e.g. Microsoft Sharepoint. Toshiba printing systems are designed to master complex and evolving data challenges and prevent unauthorised access to the device, with features such as the newly added Trusted Platform Module (TPM) technology. The component stores the encryption key on dedicated hardware separate from that used to store data.
  • Enhanced design with a stylish, easy-to-use touchscreen interface.
  • Additional security via Trusted Platform Module.
  • Excellent productivity: up to 40 pages per minute.

Specifications: e-STUDIO409AS

GENERAL

Print & Copy Speed:
40 ppm (print); 39 ppm (copy)
Warm-Up Time:
~ 9 seconds (from sleep mode)
Paper Size & Weight:
Cassette: A6-A4/custom, 60-120 g/m²
Bypass: 99x148 mm - 215x359 mm, 60-217 g/m²
Paper Capacity:
Cassette: 1x 250 sheets
Bypass: 1x 100 sheets
Max.: 900 sheets
Output Capacity:
150-sheet capacity
Automatic Duplex:
A4/custom, 60-90 g/m²
Control Panel:
10.9 cm (4.3") colour touch panel
Memory:
Standard: 2 GB, Max.: 2 GB, opt. 128 GB Intelligent Storage Device (ISD)
Interface:
10Base-T/100Base-TX/1000Base-T (incl. IPv6), High Speed USB 2.0, WLAN (IEEE802.11 a/b/g/n/ac)
Dimensions & Weight:
412 x 361 x 354 mm (W x D x H), 13.7 kg
Initial Consumables:
Starter cartridge with toner and Imaging unit

PRINT

Resolution:
Max. 1200 x 1200 dpi
First Print Output Time:
~ 5.9 seconds
Page Description Languages:
PCL 6/PCL 5/PostScript 3 and PDF v1.7 emulation, PCLm
Supported Systems:
Windows 11/10/8.1/8, Windows Server 2022/2019/2016/Server 2012/2012 R2, Server 2008/2008 R2, Linux, Novell, Citrix, SAP
Mobile Printing :
AirPrint, Mopria Print Service
Print Functions:
Universal Print Driver, Print from USB, Multiple page printing, Envelope printing

SCAN

Resolution:
Colour: Max. 600 x 600 dpi
Monochrome: Max. 1,200 x 1,200 dpi (via platen, network or USB TWAIN driver)
Scan Speed:
Simplex: Colour/Mono 20/46 ipm (150 dpi)
Duplex: Colour/Mono 40/92 ipm (150 dpi)
Document Feeder:
Simplex/Duplex: 50 sheets, A6-A4/custom, 60-90 g/m2
File Formats:
TIFF, JPEG, PDF, Secure PDF
Scan Functions:
Scan to USB/E-Mail/File/Network Folder (FTP)/Sharepoint*, TWAIN, Scan Preview only with Hard Drive installed

COPY

Resolution:
Max. 600 x 600 dpi
First Copy Output Time :
~ 5.9 seconds
Zoom:
25 - 400%
Copy Modes:
Text, Text/Photo, Photo, Graphics
Copy Functions:
Multiple pages per copy, Mixed-size copy, ID Card copy, Create booklet

FAX

Communication:
Super G3
Transmission Speed:
~ 3 seconds per page
Compression:
JBIG, JBIG2, MMR, MR, MH, JPEG
Fax Functions:
Colour fax, Speed dial (up to 500 destinations), Group dialing, Network fax
Incoming Fax Routing:
To Fax, E-Mail, FTP

SYSTEM

System Features:
Energy saving modes, Toner saturation/darkness adjustment, Remote user interface
Accounting & Security:
Private print, IP address filter, Port filter, Support of SNMPv3, SSL and IPsec protocols, 802.1x* authentication, Operator panel lock, Non-volatile memory wipe
*:
Productivity and paper specifications are related to a paper size of A4 and a paper weight of 80 g/m² if not otherwise mentioned.

Accessories

Hardware

  • KK-3200 - Adjustable Printer Stand
  • MH-3100 - Swivel Cabinet
