e-STUDIO409CS

Powerful printing systems for mid-sized workgroups meet the needs of todays workstyles while ensuring high-level data security.

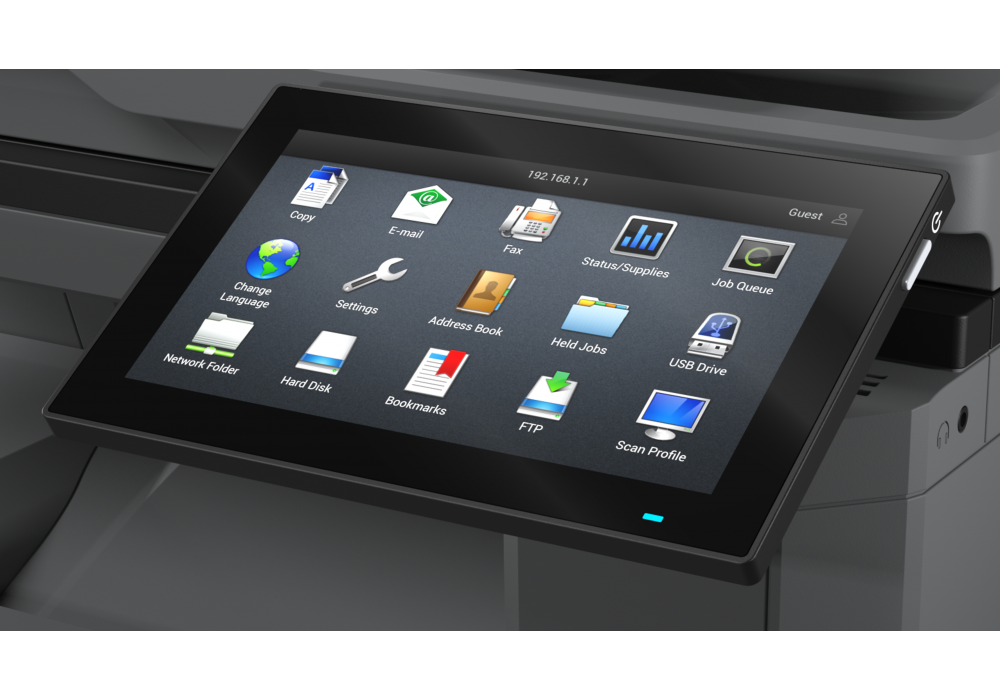

The new printing system fits perfectly in any office environment. The large colour touch panel measuring up to 17.8 cm (7 inches) for intuitive access to all functionalities, which can be additionally customised. The e-STUDIO409cs features a dual-scan document feeder (DSDF) as standard, so you can scan double-side documents with high speed. The device scans the original on both sides simultaneously. Toshiba printing systems are designed to master complex and evolving data challenges and prevent unauthorised access to the device, with features such as the newly added Trusted Platform Module (TPM) technology. The component stores the encryption key on dedicated hardware separate from that used to store data.
  • Enhanced output of up to 40 pages per minute.
  • Clean and modern design with an easy touchscreen interface.
  • Latest security features including Trusted Platform Module.

Specifications: e-STUDIO409CS

GENERAL

Print & Copy Speed:
40 ppm (print), 39.5 ppm (copy)
Warm-Up Time:
~ 8.2 seconds mono/11.0 seconds colour (from sleep mode)
Paper Size & Weight:
Cassette: A6-A4/custom, 60-216 g/m²
Manual Slot: 76x127 mm - 215x355 mm, 60-216 g/m²
Paper Capacity:
Cassette: 1x 250 sheets, Manual Slot: 1 sheet,
Max.: 2,001 sheets
Output Capacity:
200-sheet capacity
Automatic Duplex:
A4/custom, 60-105 g/m²
Control Panel:
17.8 cm (7") colour touch panel (tiltable)
Memory:
Standard: 2 GB
Max.: 2 GB, 128 GB Intelligent Storage Device (ISD)
Interface:
10Base-T/100Base-TX/1000Base-T (incl. IPv6), High Speed USB 2.0, WLAN (IEEE 802.11a,b,g,n,ac)
Dimensions & Weight:
~ 476 x 479 x 492 mm (W x D x H), ~ 27.1 kg
Initial Consumables:
Starter cartridge with toner and Imaging Unit

PRINT

Resolution:
Max. 1,200 x 1,200 dpi
First Print Output Time:
~ 6.3 seconds
Page Description Languages:
PCL 6/PCL 5/PostScript 3 and PDF v1.7 emulation, PPDS Migration tool
Supported Systems:
Windows 11/10/8/8.1, Windows Server 2022/2019/2016, Windows Server 2012/2012 R2, Windows Server 2008/2008 R2, Linux, Novell, Citrix, SAP
Mobile Printing :
AirPrint, Mopria Print Service
Print Functions:
Universal Print Driver, Print from USB, Print from SharePoint*, Multi-page printing, Envelope printing

SCAN

Resolution:
Colour: Max. 600 x 600 dpi
Monochrome: Max. 600 x 600 dpi
Scan Speed:
Simplex: Colour/Mono 40/49 ipm (300 x 600 dpi)
Duplex: Colour/Mono 80/98 ipm (300 x 600 dpi)
Document Feeder:
Simplex/Duplex: 100 sheets, A6-A4/custom, 52-120 g/m²
File Formats:
TIFF, JBIG, JPEG, BMP, non-searchable PDF, searchable PDF*, RTF*
Scan Functions:
Scan to E-Mail/USB/FTP, Scan to network/USB connected computer, Scan to Window network folder (requires installation of embedded scan to folder application), Scan to Sharepoint*, Scan preview, e-STUDIO Scan, TWAIN

COPY

Resolution:
Max. 600 x 600 dpi
First Copy Output Time :
~ 8.6/8.7 seconds (Mono/Colour)
Zoom:
25-400%
Copy Modes:
Text, Text/Photo, Photo, Graphics
Copy Functions:
Multiple pages per copy, Margin shift, ID Card copy

FAX

Communication:
Super G3
Transmission Speed:
~ 3 seconds (Mono/Colour)
Compression:
JBIG, JBIG2, MMR, MR, MH, JPEG
Fax Functions:
Colour fax, Speed dial (up to 500 destinations), Group dialing, Network fax
Incoming Fax Routing:
To Fax, E-Mail, FTP

SYSTEM & SECURITY

System Features:
Energy saving modes, Toner saturation/colour calibration, Remote user interface
Accounting & Security:
Private print, IP address filter, Port filter, Support of SNMPv3, SSL and Ipsec protocols, 802.1x Authentication, Operator panel lock, Non-volatile memory wipe, Intelligent Storage Device or hard disk* encryption, Automatic hard disk* wiping, Out-of-service erase for ISD and optional HDD (End-of-life disk wiping), Trusted Platform Module (TPM)
*:
Productivity and paper specifications are related to a paper size of A4 and a paper weight of 80 g/m² if not otherwise mentioned.

Accessories

Hardware

  • KK-3210 - Adjustable Printer Stand
  • MH-3100 - Swivel Cabinet
