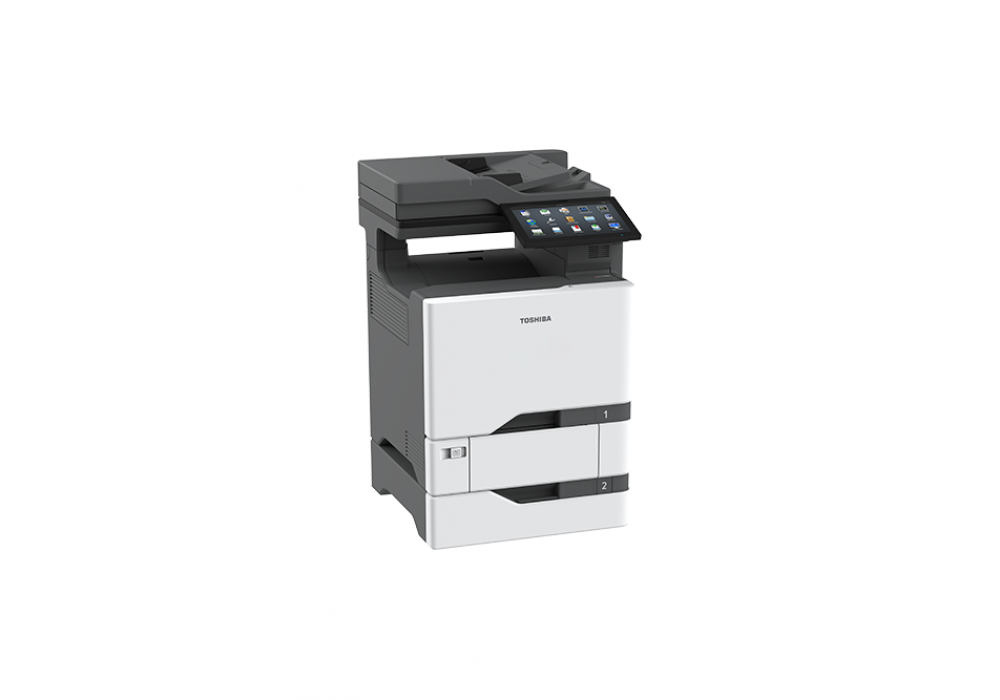

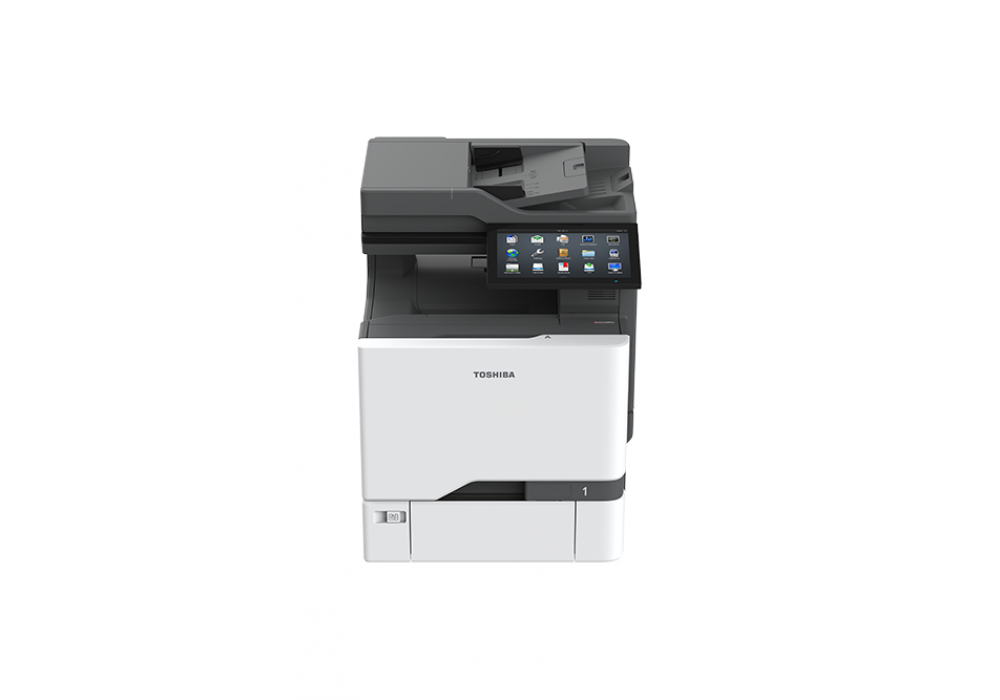

e-STUDIO509CS

For mid-sized to large workgroups that demand impeccable print quality.

With an output volume of up to 50 pages per minute (ppm), single-pass duplex scanning and a 25.4 cm (10 inch) touchscreen user interface, the multifunctional printer (MFP) is ideal for mid-sized to large workgroups that demand impeccable print quality. Trusted Platform Module (TPM) is a standard feature. It authenticates user authorisation and performs system integrity checks.
  • Professional-quality output in vibrant colours and sharp definition, enabling you to print more material in-house.
  • Keep security and work standards up-to-date by installing the latest apps and upgrades throughout the system’s life.
  • Fast and accurate scanning with the dual scan document feeder (DSDF) including ultrasonic multifeed detection.

Specifications: e-STUDIO509CS

GENERAL

Print & Copy Speed:
50 ppm
Warm-Up Time:
~ 13.5 seconds mono/14.1 seconds colour (from sleep mode)
Paper Size & Weight:
Cassette: A6-A4/custom, 60-218 g/m²
Bypass: A6-A4, 60-218 g/m² (special up to 218g/m²)
Paper Capacity:
Cassette: 1x 550 sheets
Bypass: 1x 100 sheets
Max.: 2,850 sheets
Output Capacity:
300-sheet capacity
Automatic Duplex:
A6-A4/custom, 60-162 g/m²
Control Panel:

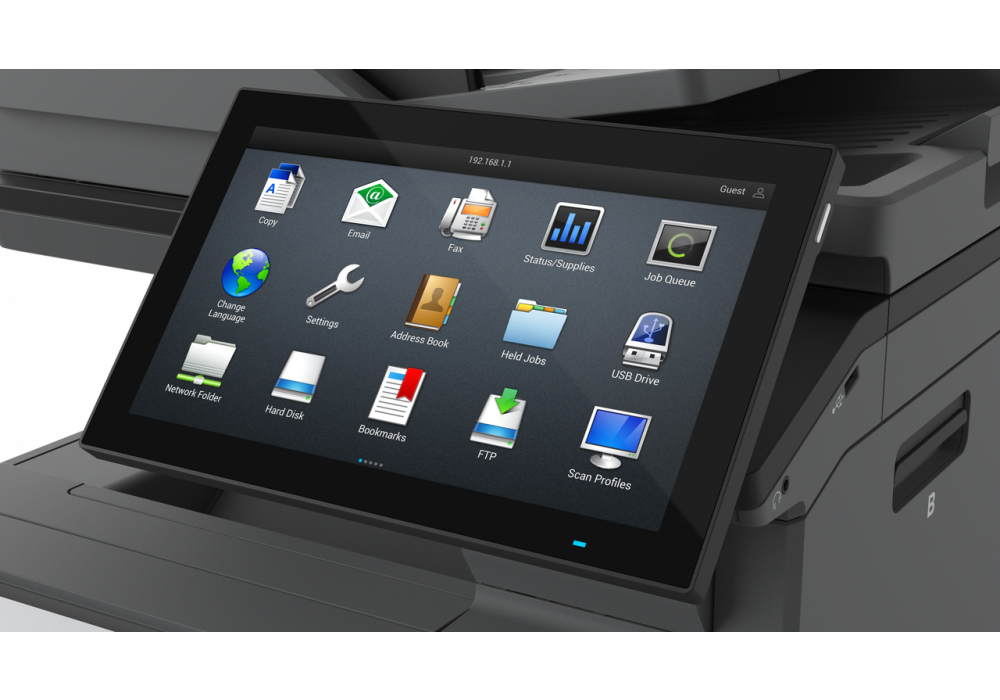

25.4 cm (10") colour touch panel (tiltable)
Memory:
Standard: 2 GB, Max.: 2 GB, incl. 128 GB Intelligent Storage Device (ISD)
Interface:
10Base-T/100Base-TX/1000Base-T (incl. iPv6), High Speed USB 2.0, WLAN* (IEEE802.11a,b,g,n,ac wireless w/NFC)
Dimensions & Weight:
479 x 533 x 621 mm (W x D x H), ~ 39.5 kg
Initial Consumables:
Starter cartridge with toner and Imaging Unit

PRINT

Resolution:
Max. 1,200 x 1,200 dpi
First Print Output Time:
~ 5.6/6.1 seconds (mono/colour)
Page Description Languages:
PCL 6/PCL 5/PostScript 3 and PDF v1.7 emulation, PPDS Migration tool
Supported Systems:
Windows 11/10/8/8.1, Windows Server 2022/2019/2016/2012 R2/2012 R2 R2, Windows Server 2008, Linux, Novell, Citrix, SAP
Mobile Printing :
AirPrint, Mopria Print Service
Print Functions:
Universal Printer Driver, Print from USB, Print from SharePoint*, Multi-page printing, Envelope printing

SCAN

Resolution:
Colour: max 600 x 600 dpi
Monochrome: max 600 x 600 dpi
Scan Speed:
Simplex: Colour/Mono 49/49 ipm (300 x 600 dpi)
Duplex: Colour/Mono 98/98 ipm (300 x 600 dpi)
Document Feeder:
Simplex/Duplex: 100 sheets, A6-A4/custom, 52-120 g/m²
File Formats:
TIFF, JBIG, JPEG, BMP, non-searchable PDF, searchable PDF, RTF
Scan Functions:
Scan to E-Mail, Scan to USB, Scan to FTP, Scan to network/USB connected computer, Scan to Window network folder (requires installation of embedded scan to folder application), embedded OCR, Scan to SharePoint*, Scan preview, e-STUDIO Scan, TWAIN

COPY

Resolution:
Maximum 600 x 600 dpi
First Copy Output Time :
~ 5.8/6.3 seconds (Mono/Colour)
Zoom:
25-400%
Copy Modes:
Text, Text/Photo, Photo, Graphics
Copy Functions:
Multiple pages per copy, Margin shift, ID Card copy

FAX

Communication:
Super G3
Transmission Speed:
~ 3 seconds per page
Compression:
JBIG, JBIG2, MMR, MR, MH, JPEG
Fax Functions:
Colour fax, Speed dial (up to 500 destinations), Group dialing, Network fax
Incoming Fax Routing:
To Fax, E-Mail, FTP

SYSTEM & SECURITY

System Features:
Energy saving modes, Toner saturation/colour calibration, Remote user interface
Accounting & Security:
Private print, IP address filter, Port filter, Support of SNMPv3, SSL and IPsec protocols, 802.1x Authentication*, Operator panel lock, Non-volatile memory wipe, Intelligent Storage Drive or hard disk* encryption, Automatic hard disk* wiping, Out-of-service erase for ISD and optional HDD (End-of-life disk wiping), Trusted Platform Module (TPM)
*:
Productivity and paper specifications are related to a paper size of A4 and a paper weight of 80 g/m² if not otherwise mentioned.

Accessories

Hardware

  • KK-3210 - Adjustable Printer Stand
  • GE-1250 - Hard Disk Drive
  • KD-1070 - Drawer
  • GN-1170 - Wireless LAN Module
  • GN-1180 - Wireless LAN Module

Software
